Main Product List |
|
Primary Combustion Chamber |
Secondary Combustion Chamber |
||
Mix-Combustion Chamber |
||
Smoke Filter Chamber |
||
Incinerator Control Case |
||
Chimney:5.0Meters *(upgrade to Stainless Steel, free cost) |
||
|
||
Oil Tank: 150Liters |
||
|

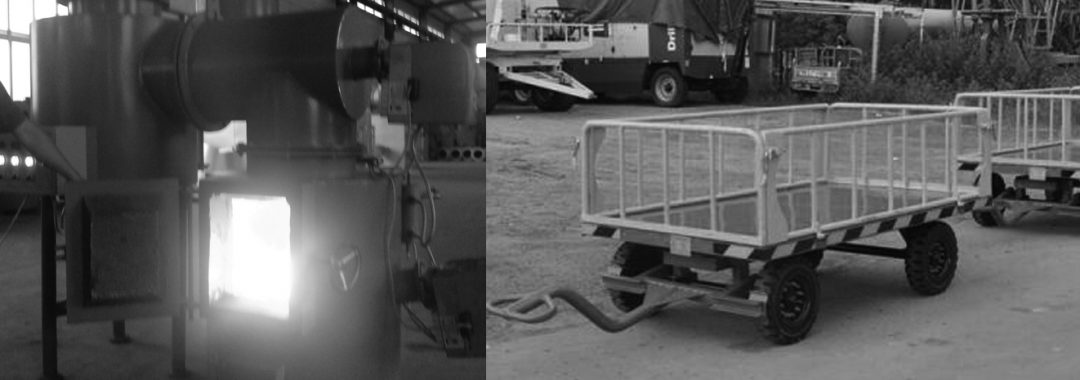

Mobile Trailer for Incinerator |
Model |
YD |
Burning Rate (kgs/Hour) |
Average 20-50 kgs/hour |
Feed Capacity (kgs) |
Average 80 kgs/feeding |
Equipment Weight |
2500 kgs(Incinerator) |
Primary Chamber (Liters) |
400 |
Secondary Chamber (Liters) |
140 |
External Dimensions (cm) |
180x160x200 |
Internal Dimensions (cm) |
70x70x85 |
Oil Tank(Liters) |
150 |
Door Opening (cm) |
45×55 |
Chimney (M) |
5 |
Chimney Type |
|
Secondary Chamber |
YES |
Mix-Combustion Chamber |
YES |
Smoke Filter Chamber |
YES |
Combustion Fuel |
Oil |
Residency Time |
2.0 Sec. |
Temperature Monitoring |
YES |
1st. Chamber Temperature |
|
2nd. Chamber Temperature |
|
